ANCHOR WINCHES:

--------------------------
Model 1500


Boats 15 to 17 foot. Drum holds 60 metres 10mm rope plus chain

>> more info

--------------------------
Model 2000

Boats 18 to 23 foot. Drum holds 90 metres 10mm rope plus chain

>> more info

--------------------------
Model 2500

Boats 24 to 30 foot. Drum holds 130 metres 10mm rope plus chain

>> more info

--------------------------
Model 3000

Boats 30 to 40 foot. Drum holds about 150 metres 12mm rope.

>> more info

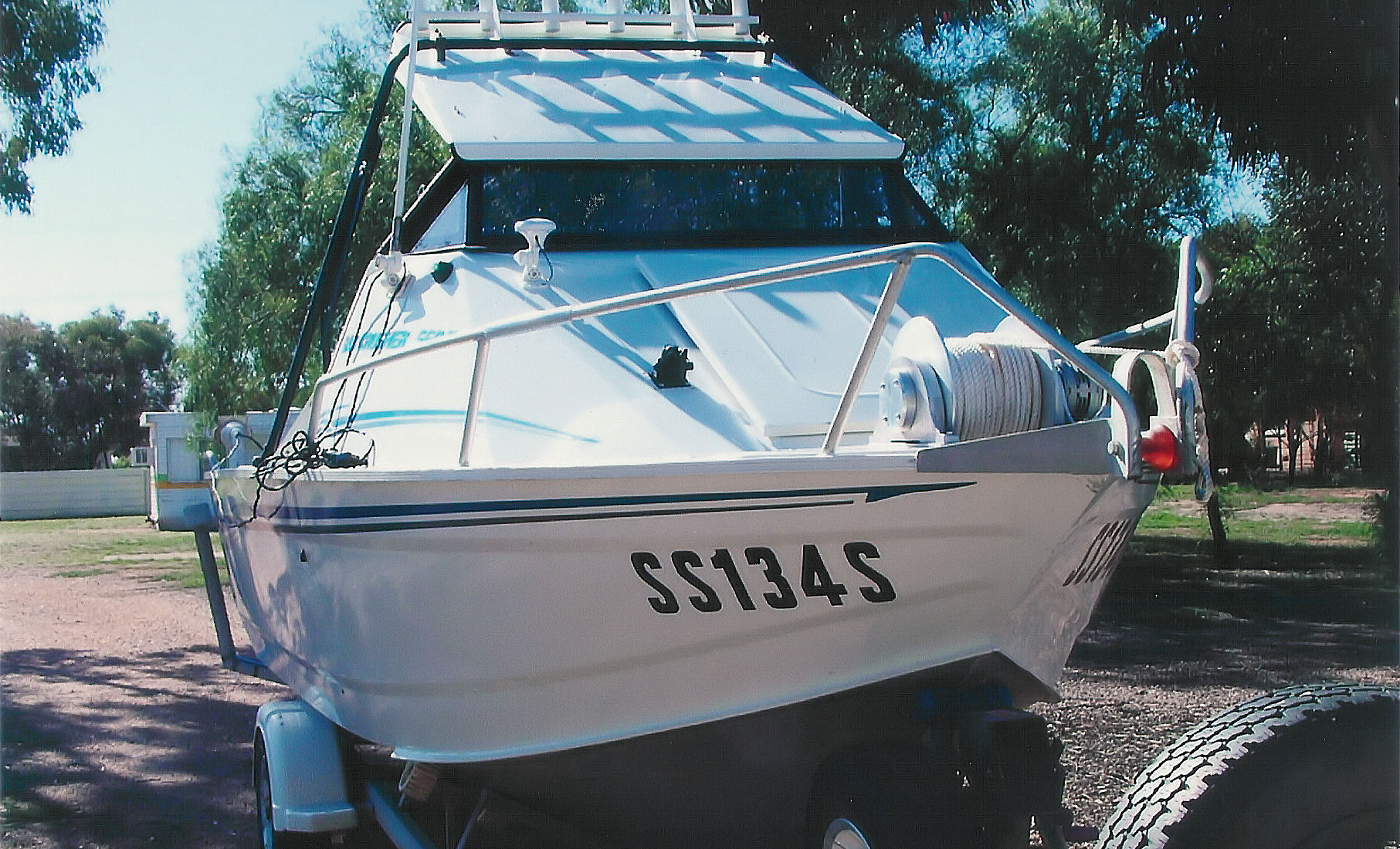

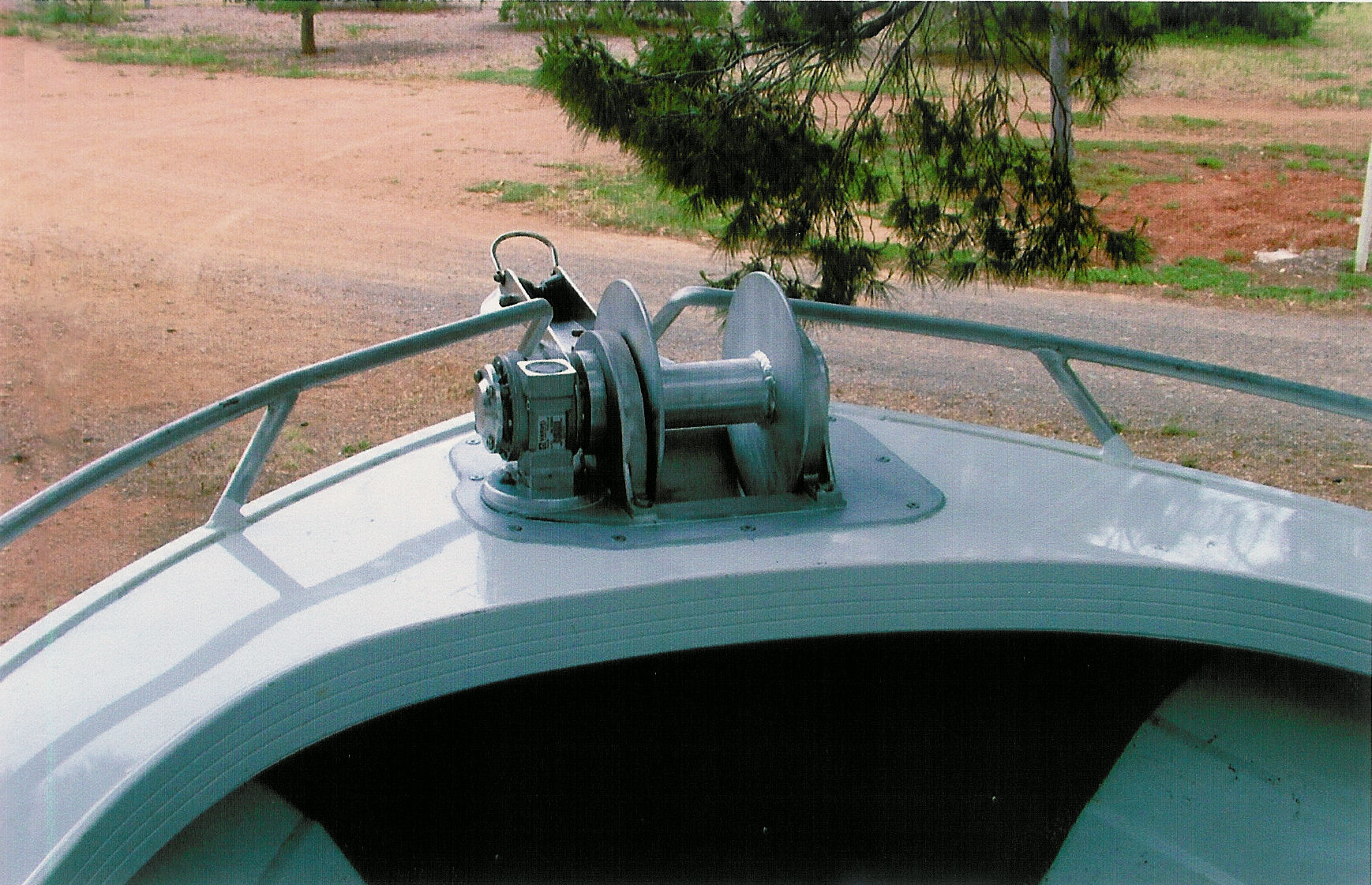

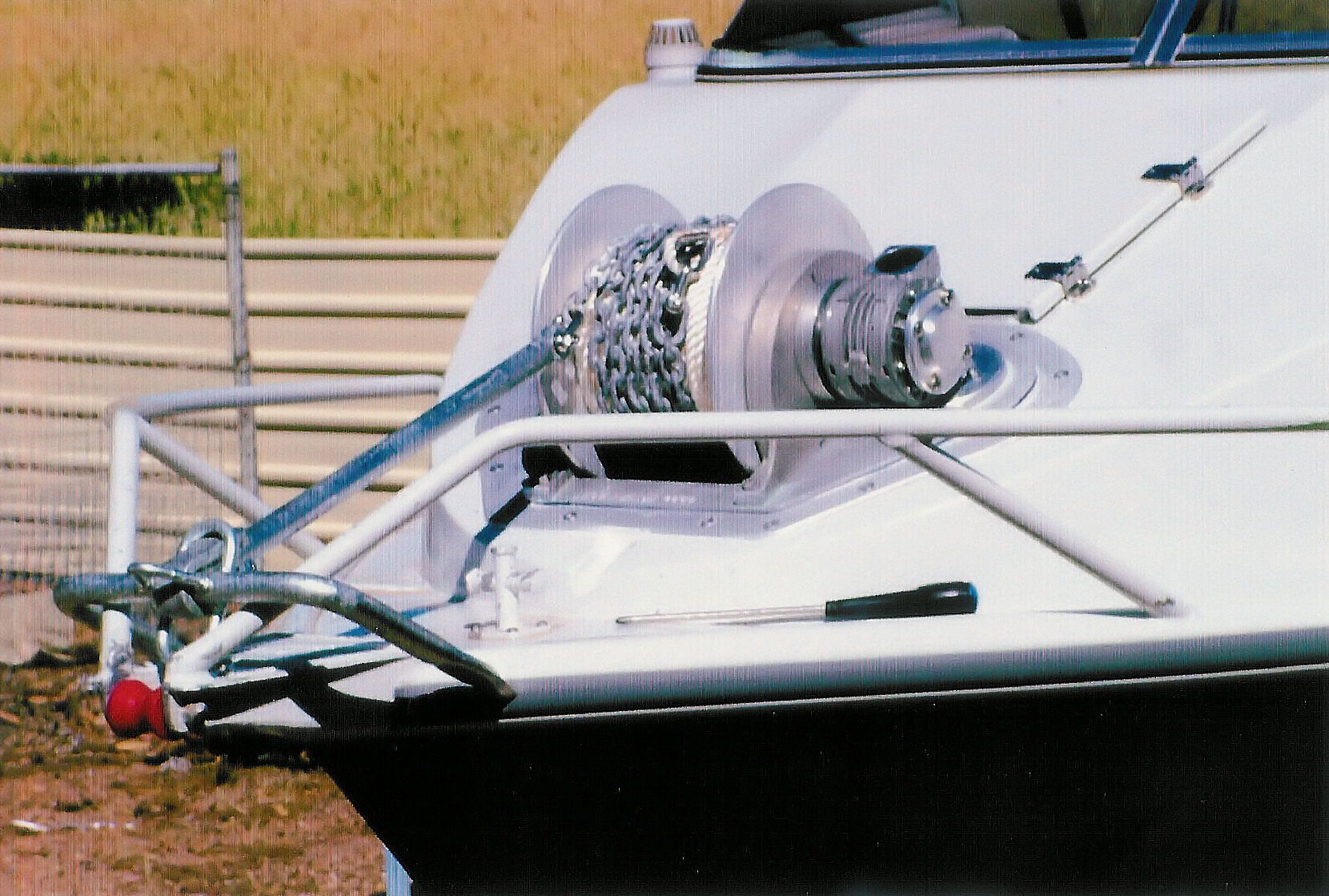

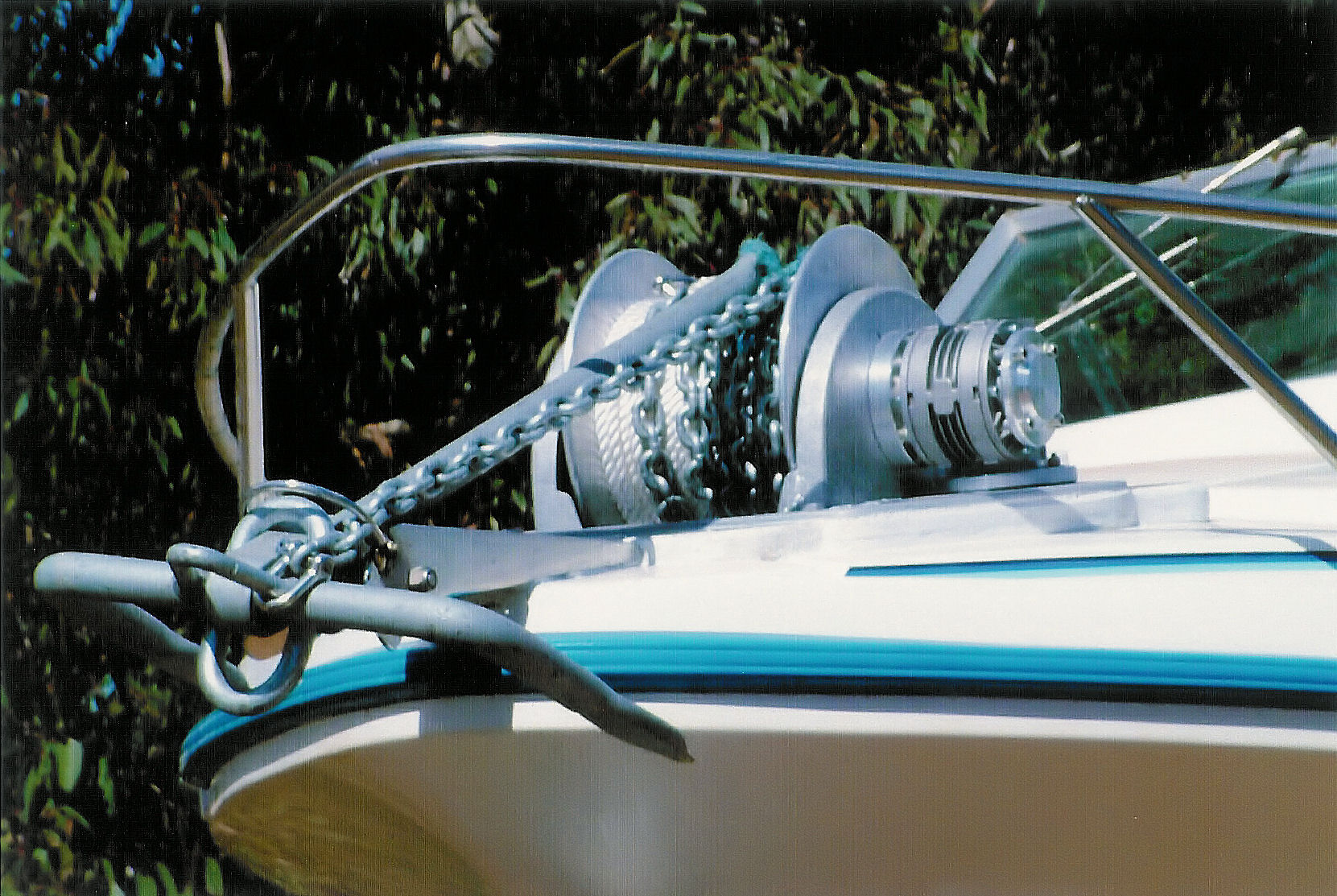

This photo gallery shows just a small selection of my winches.



Click on the photos to enlarge.

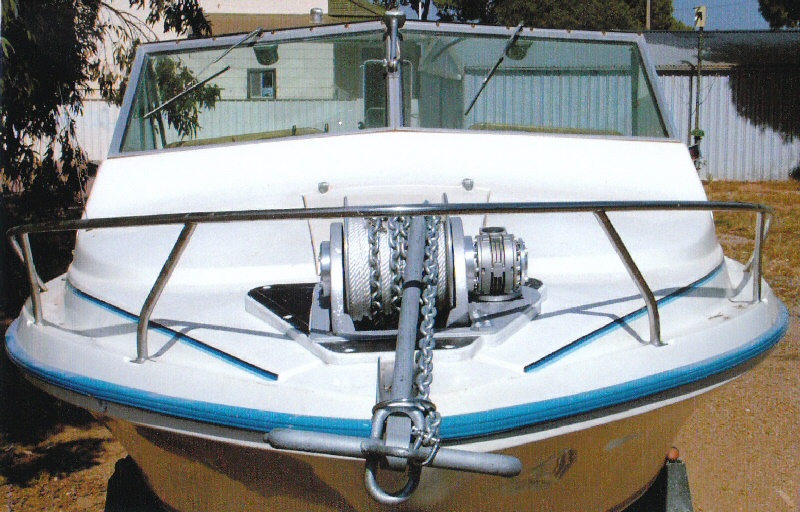

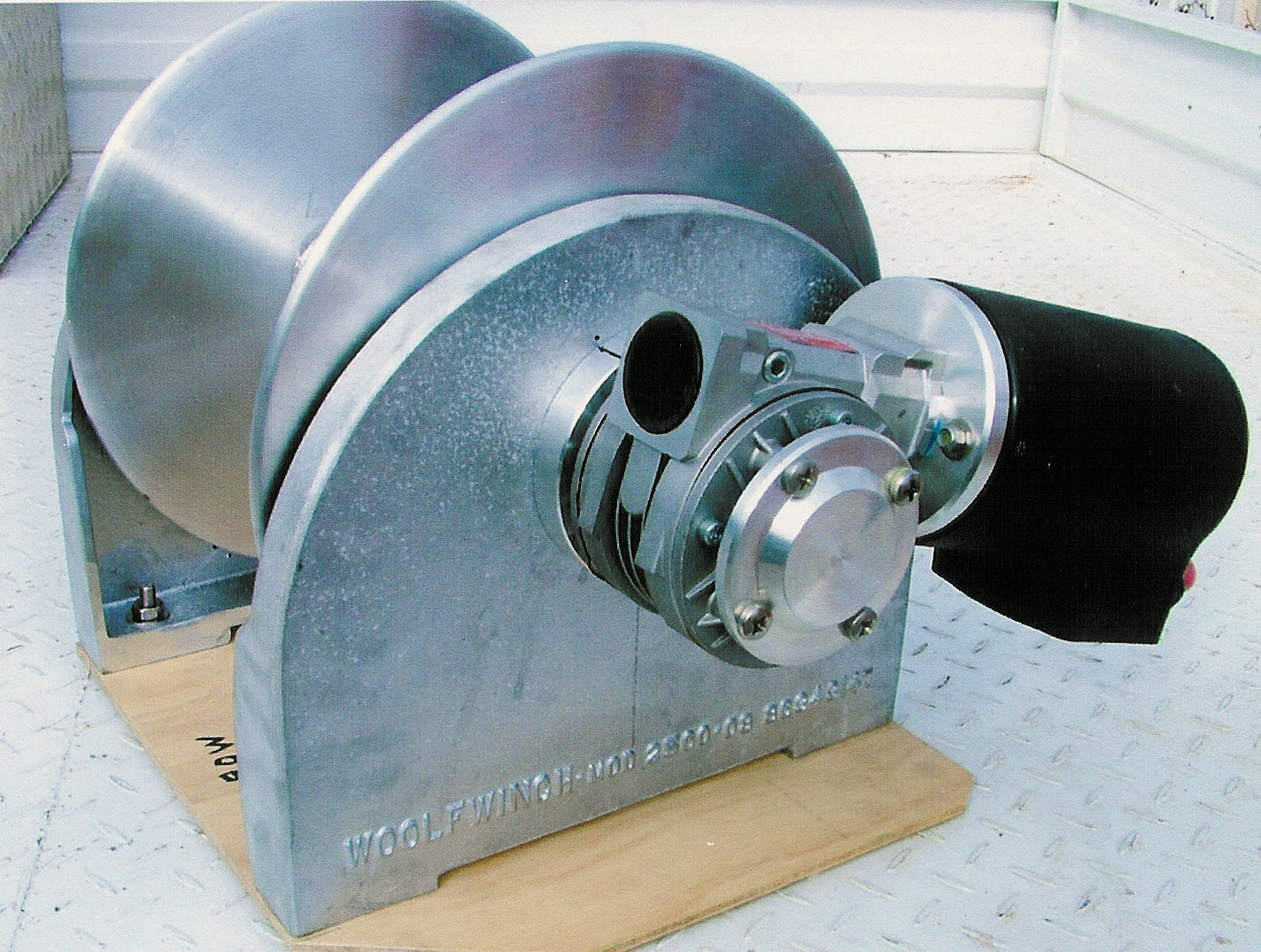

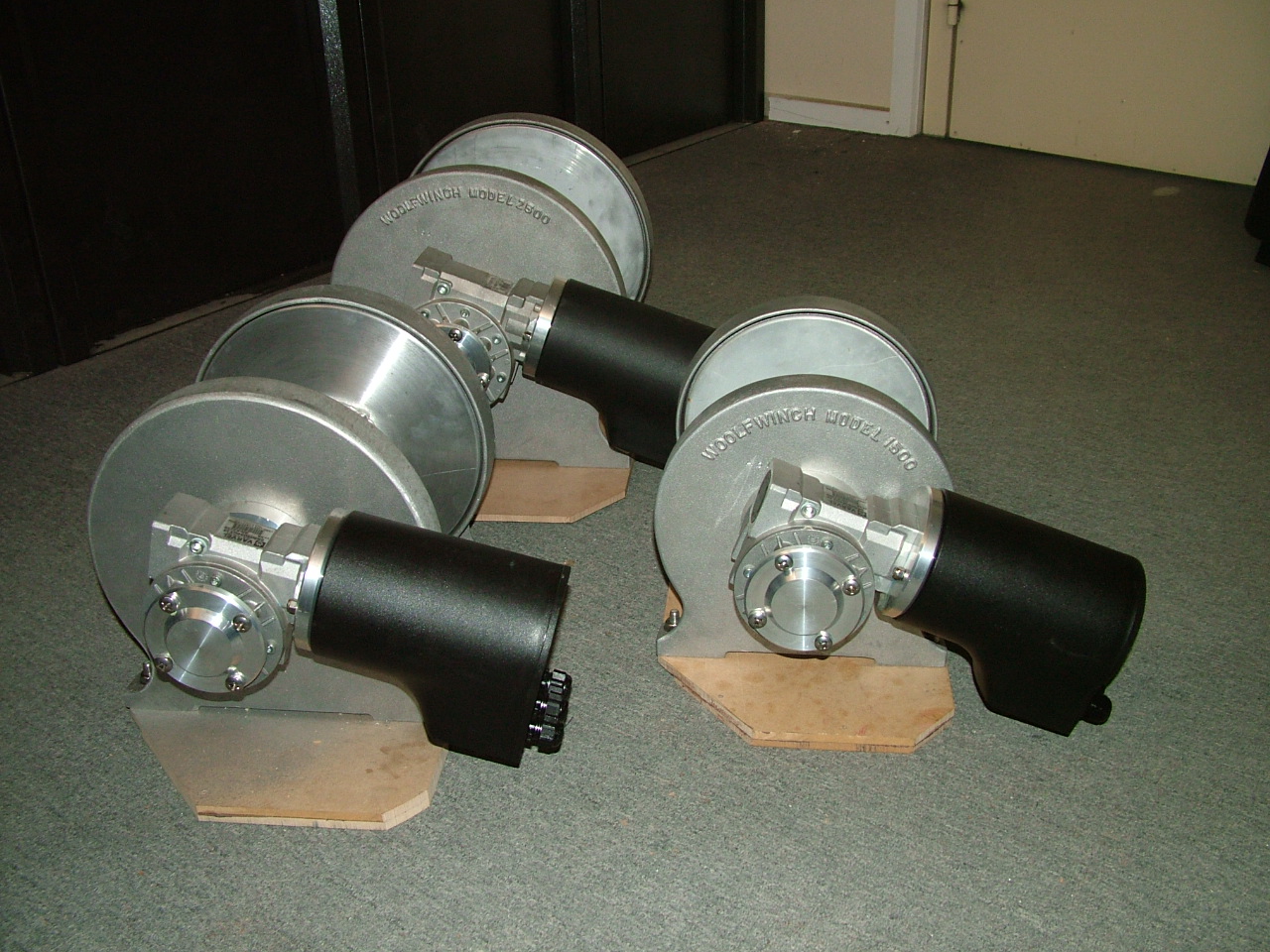

New Standard Model 1500, 2000 and 2500 Woolfwinch







Click on photo above to see New standard models 1500 2000 2500 showing spool rim encased in frame





These winches now have the sides of the spool encased making them

the only drum winch on the market where it is impossible to jam the rope.

The motor can be rotated to be fixed in any one of eight positions.

As with all our winches they are manufactured using casted marine grade aluminium with stainless steel shaft and fixings.

All winches have a 25mm bearing on the off side sealed with an aluminium cap.

Standard models can be built wider to take more rope.

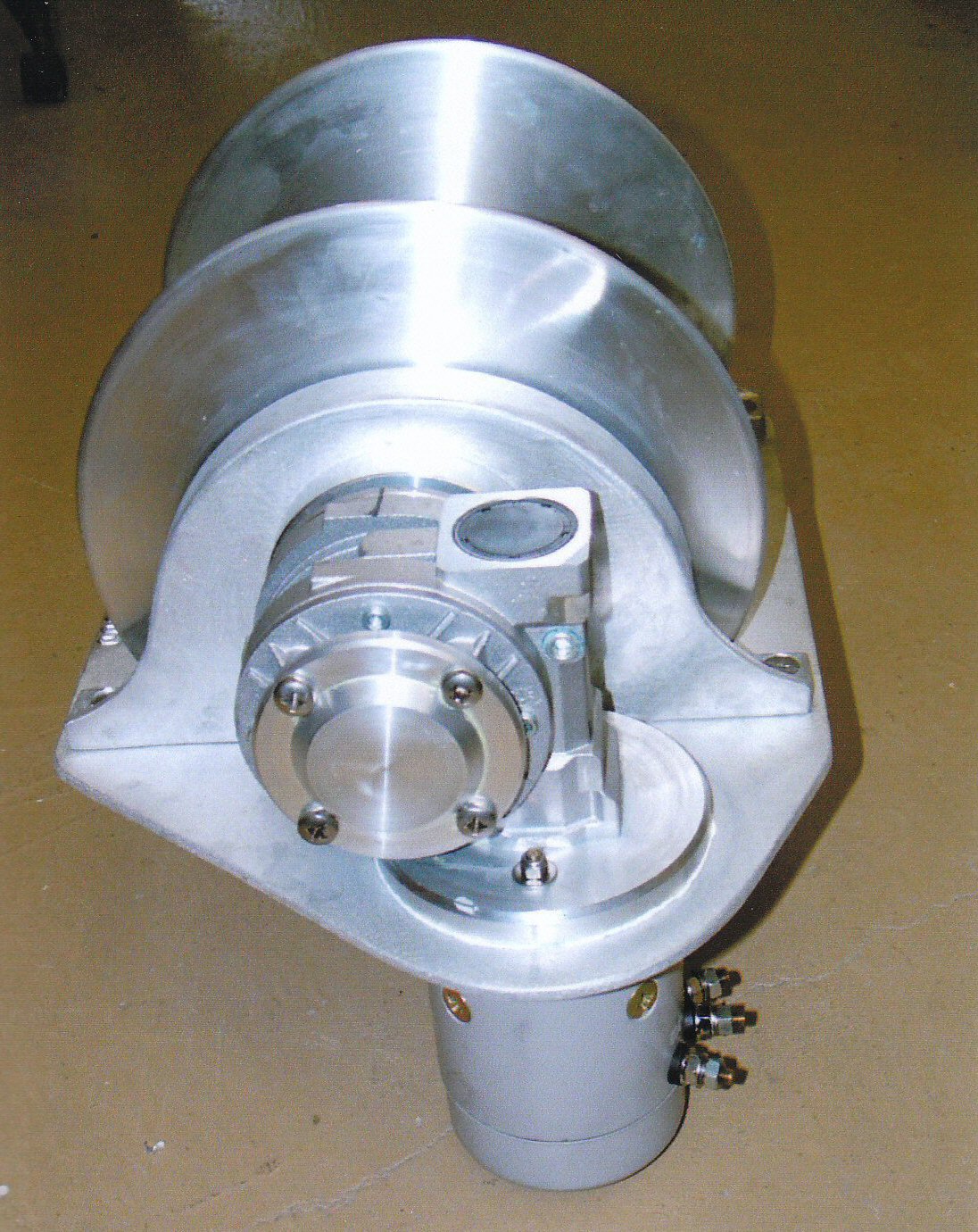

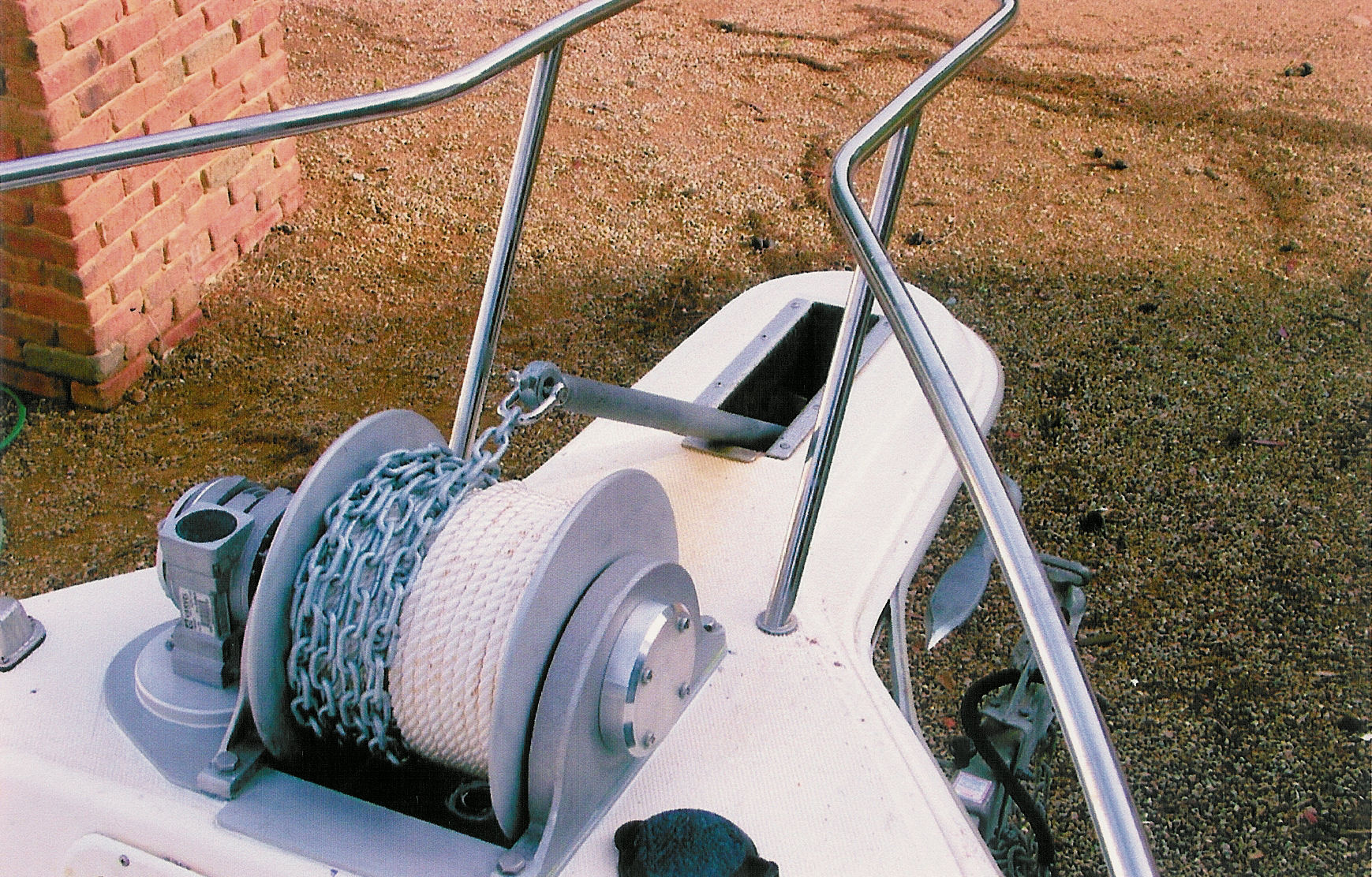

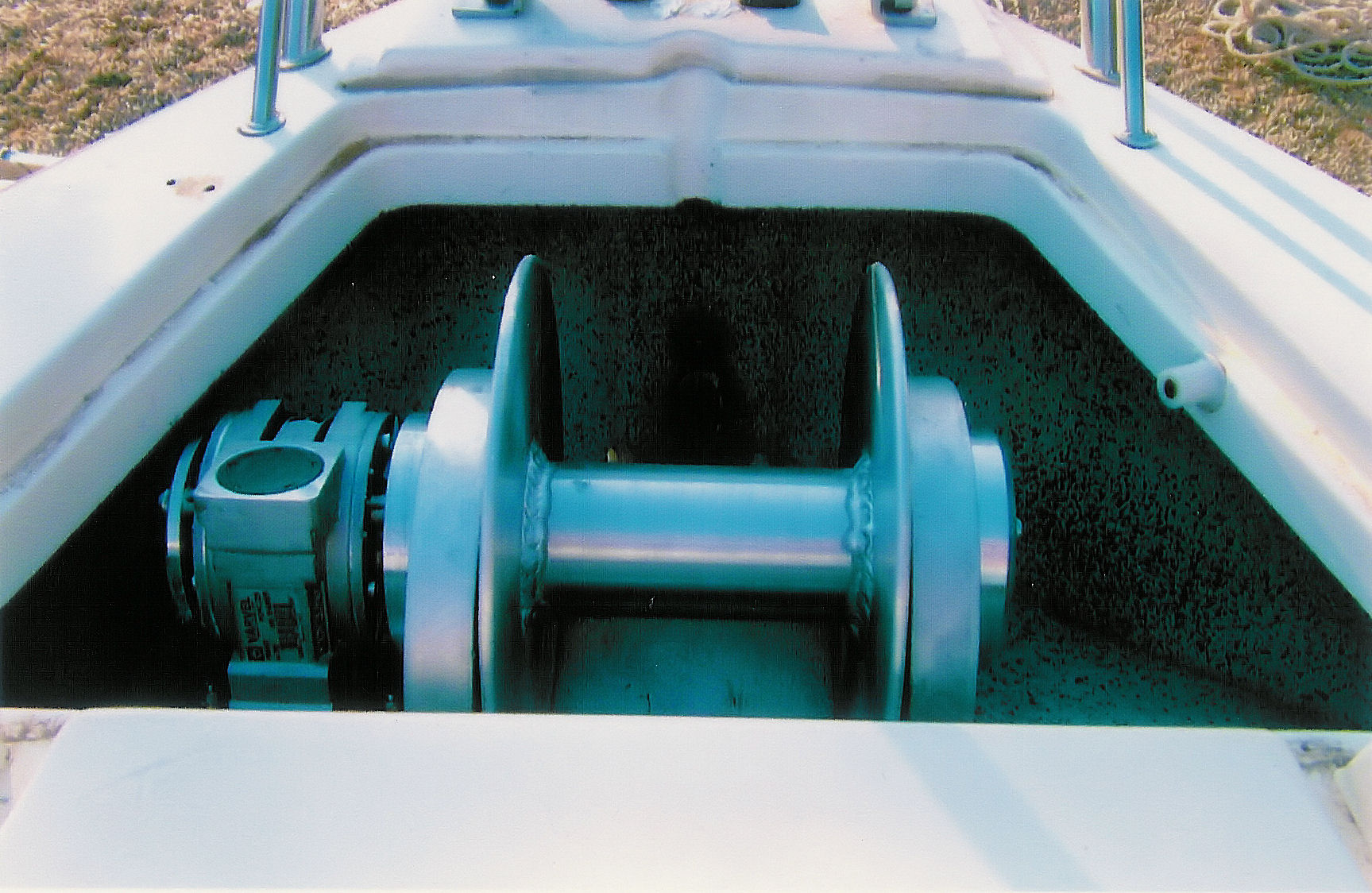

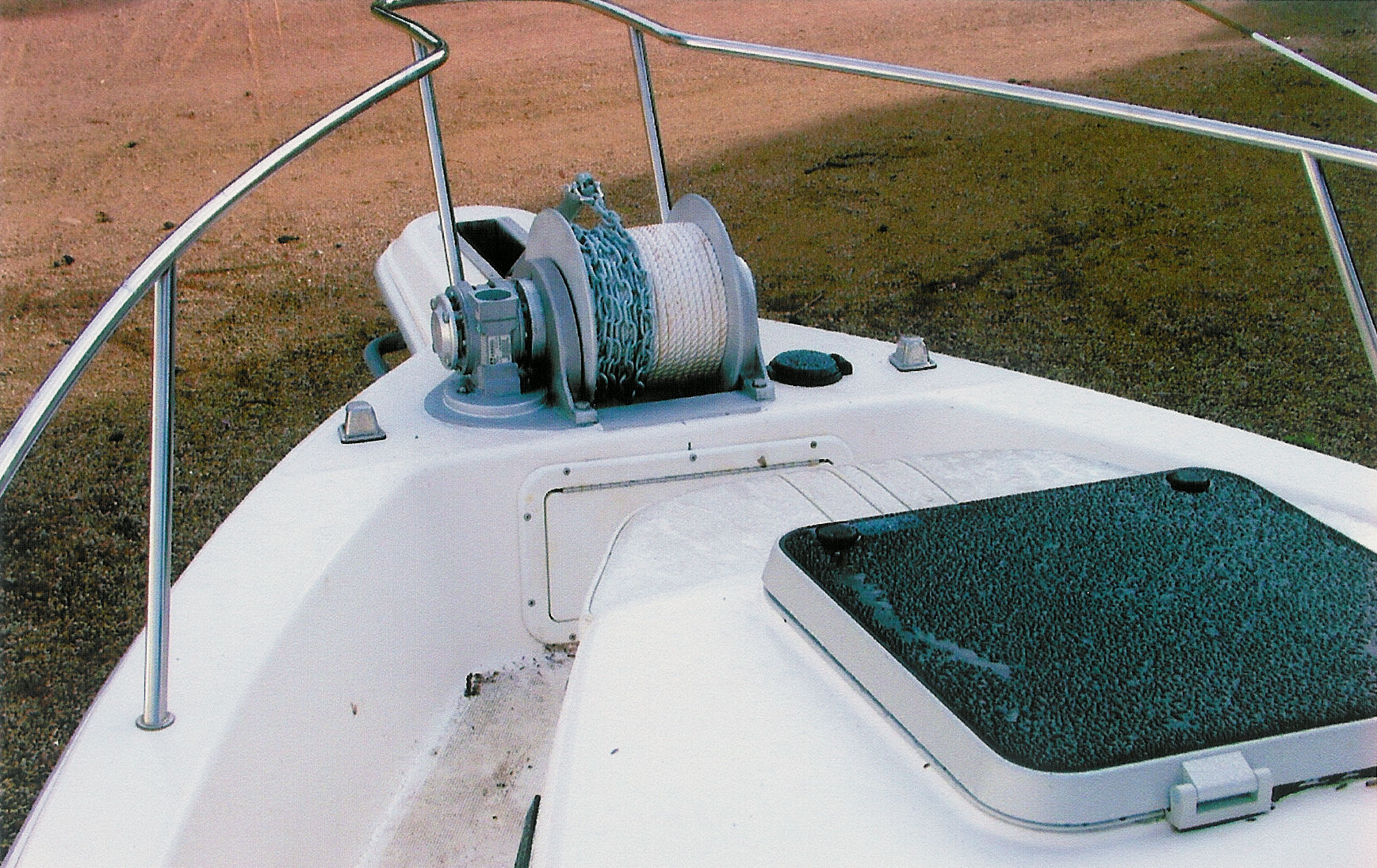

New compact well base Model 1500, 2000 and 2500 Woolfwinch



 These winches can be let into the deck,  mounted over existing rope well,

or let into the bulkhead.  For boat owners who do not want to mount a drum winch on deck, this new model lowers

 the winch into the deck giving a much lower profile. The operator can easily still see the winch avoiding rope overrun.

All electrics are below deck including the motor.



The wellbase models hold the same amount of rope as the standard models.

Even our smallest winches have 1400 watt motors as do our bigger models - 1700 watt motors supplied by requests.

Winches supplied with double acting solenoid, control switch, template, mounting bolts and wiring diagram.

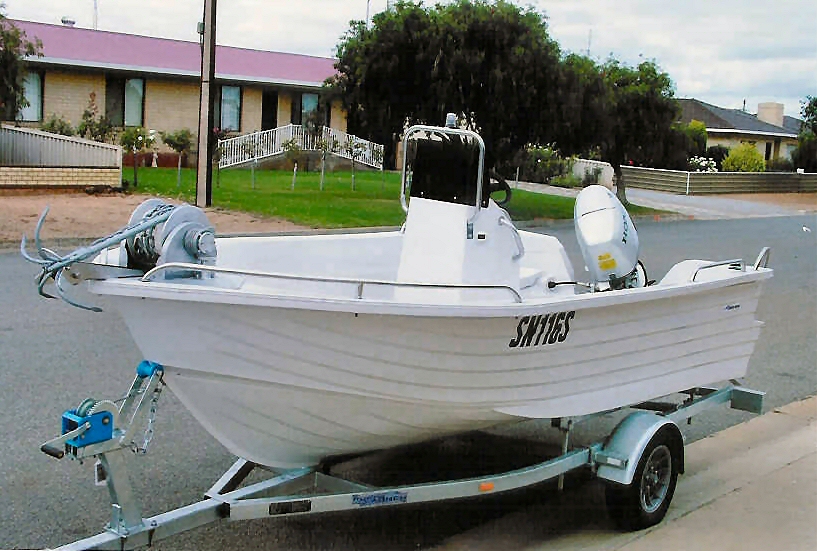

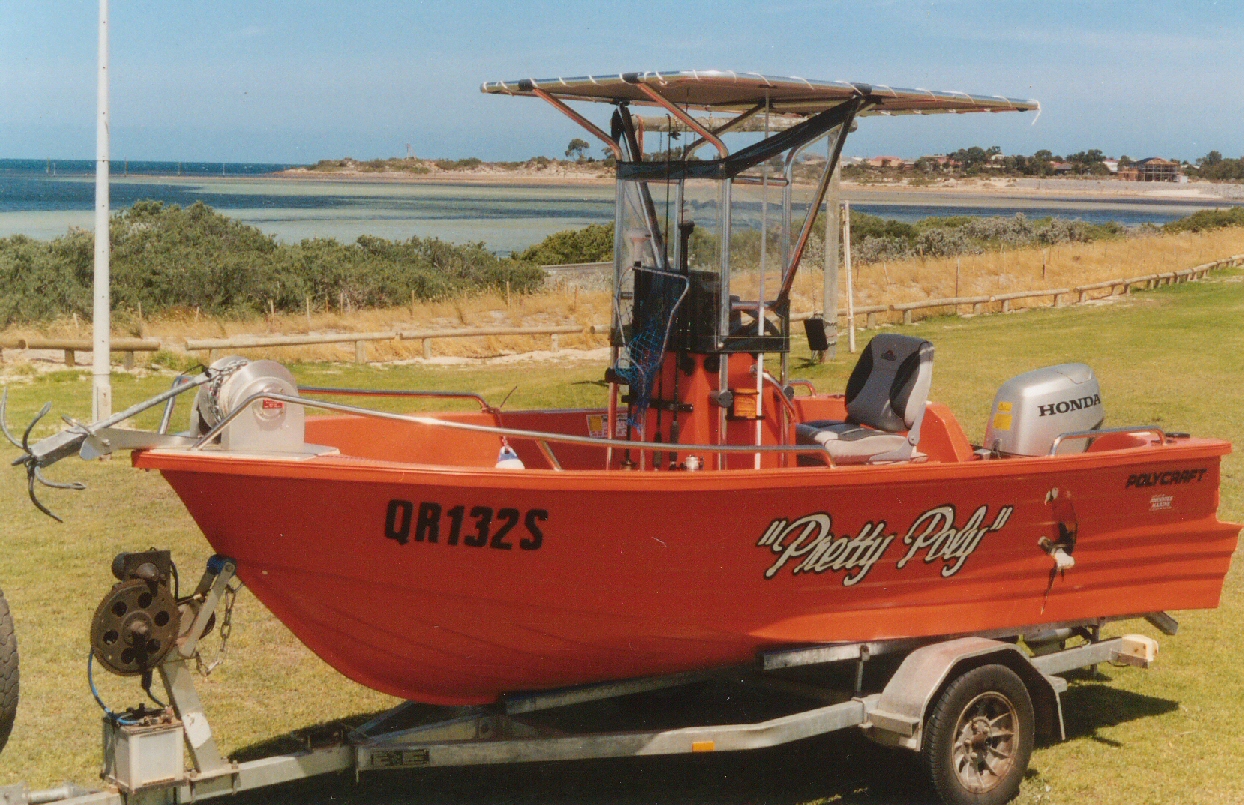

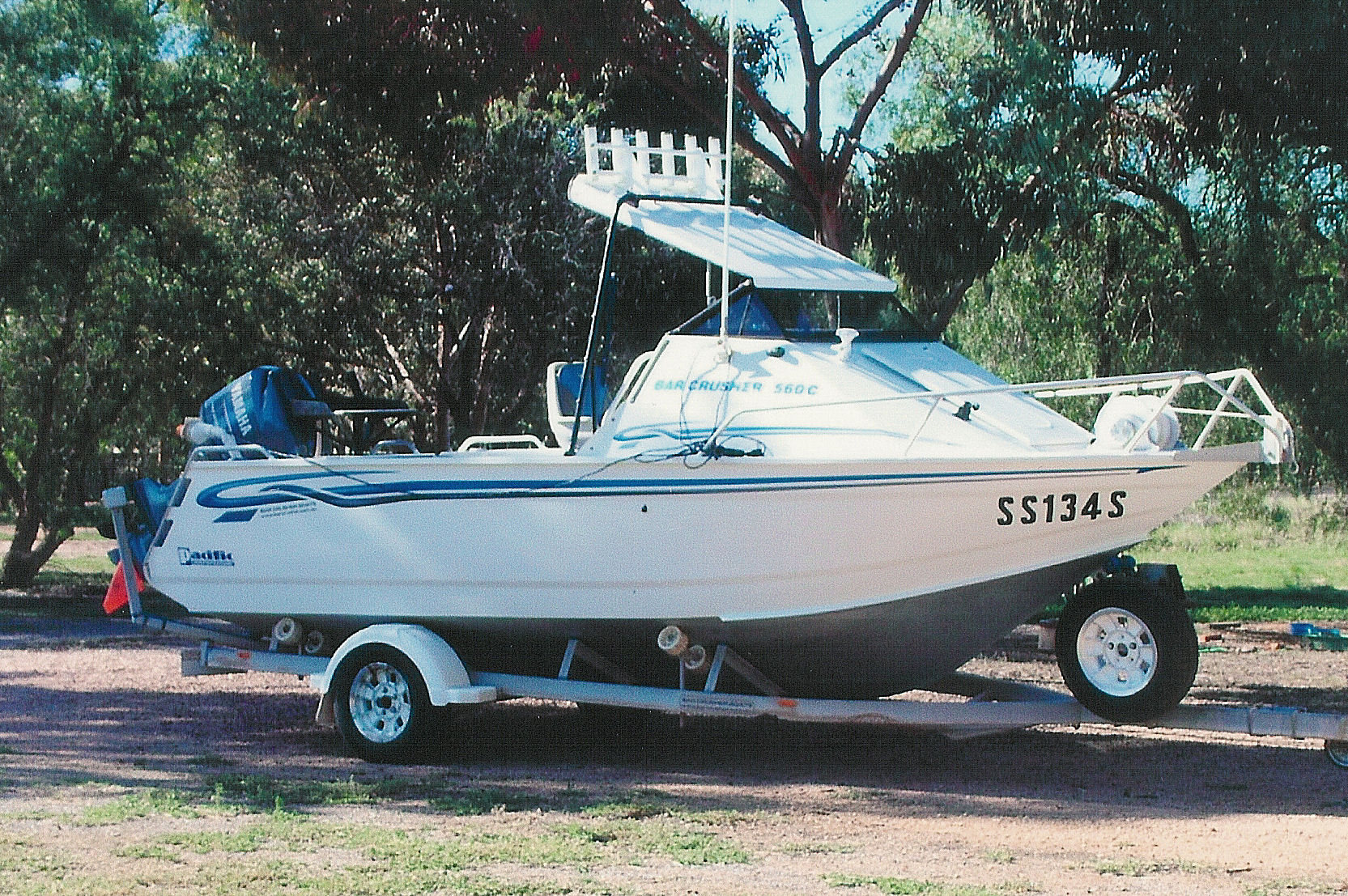

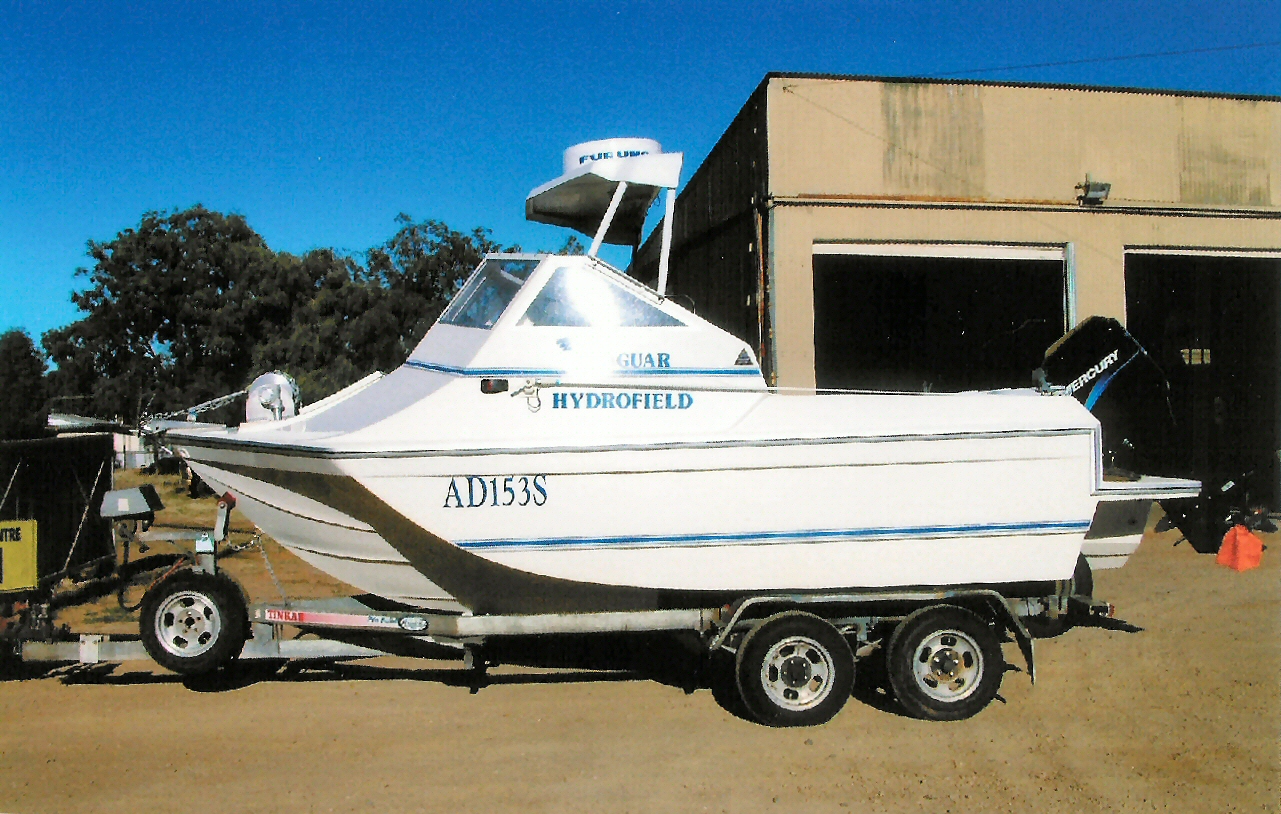

MODEL 1500







Built for boats 15 to 17 foot. The Drum holds 60 metres 10mm rope plus chain.











Two new Model 1500 winches, the Standard Model 1500 and the Gulf Special Wellbase.







Both winches have powerful 1400 watt motors and stronger gearboxes making them suitable for boats 15 to 25 foot.

Both winches hold 60 metres of 10 mm rope or 80 metres of 8mm rope plus chain. Now more affordable.

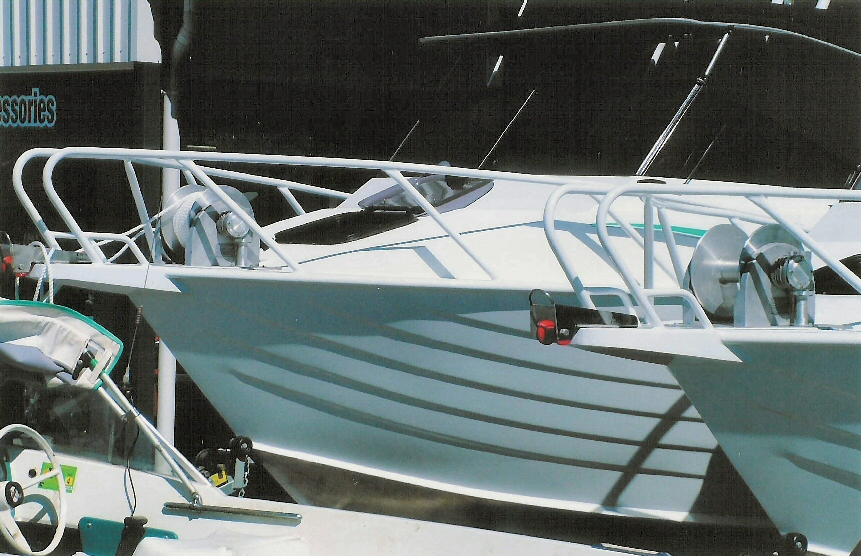

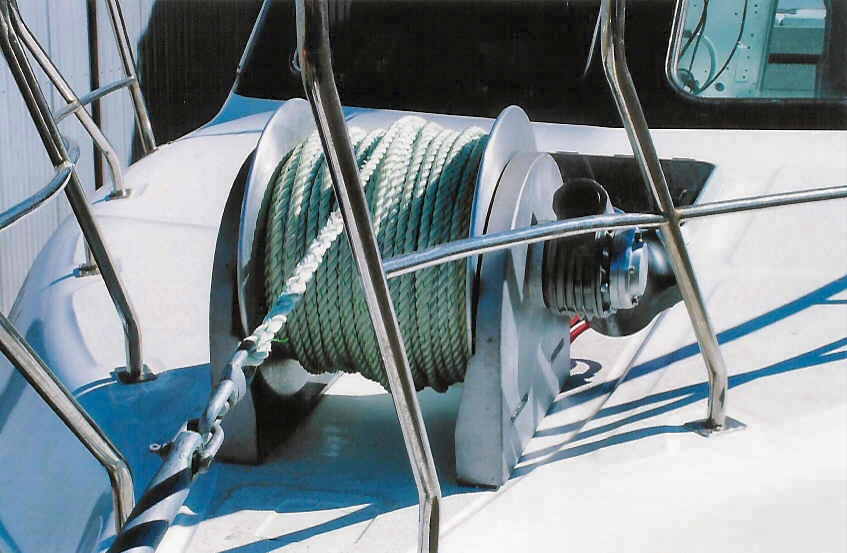

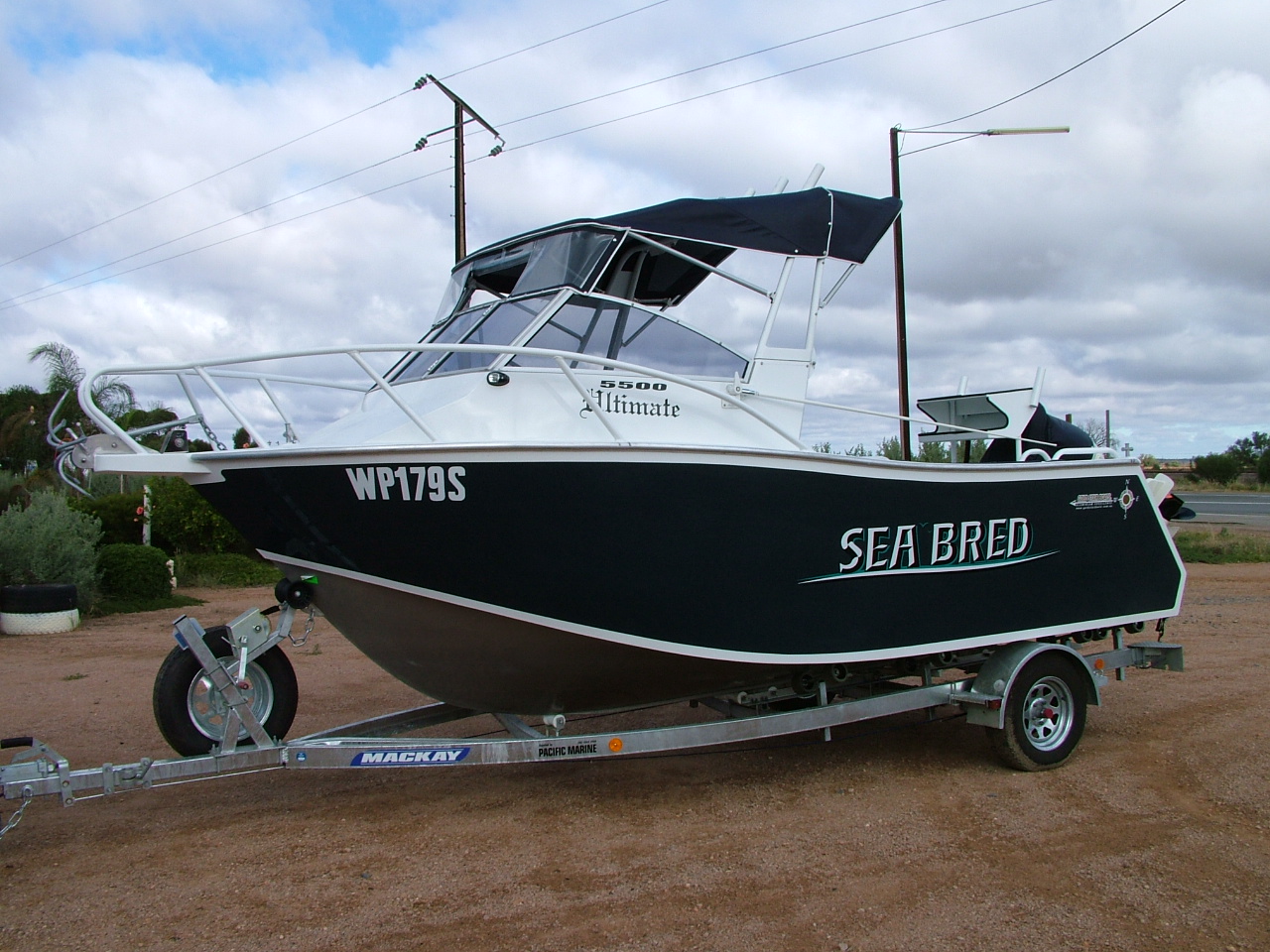

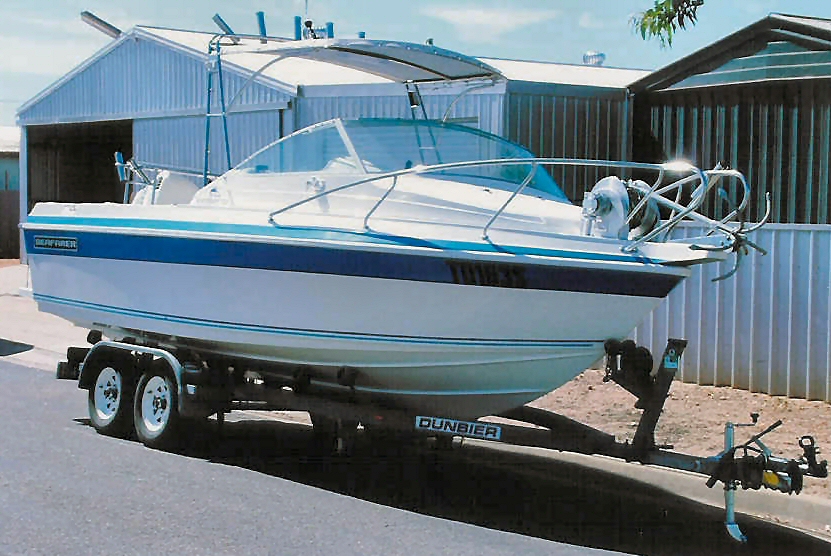

MODEL 2000







Built for boats 18 to 23 foot. The Drum holds 90 metres 10mm rope plus chain.

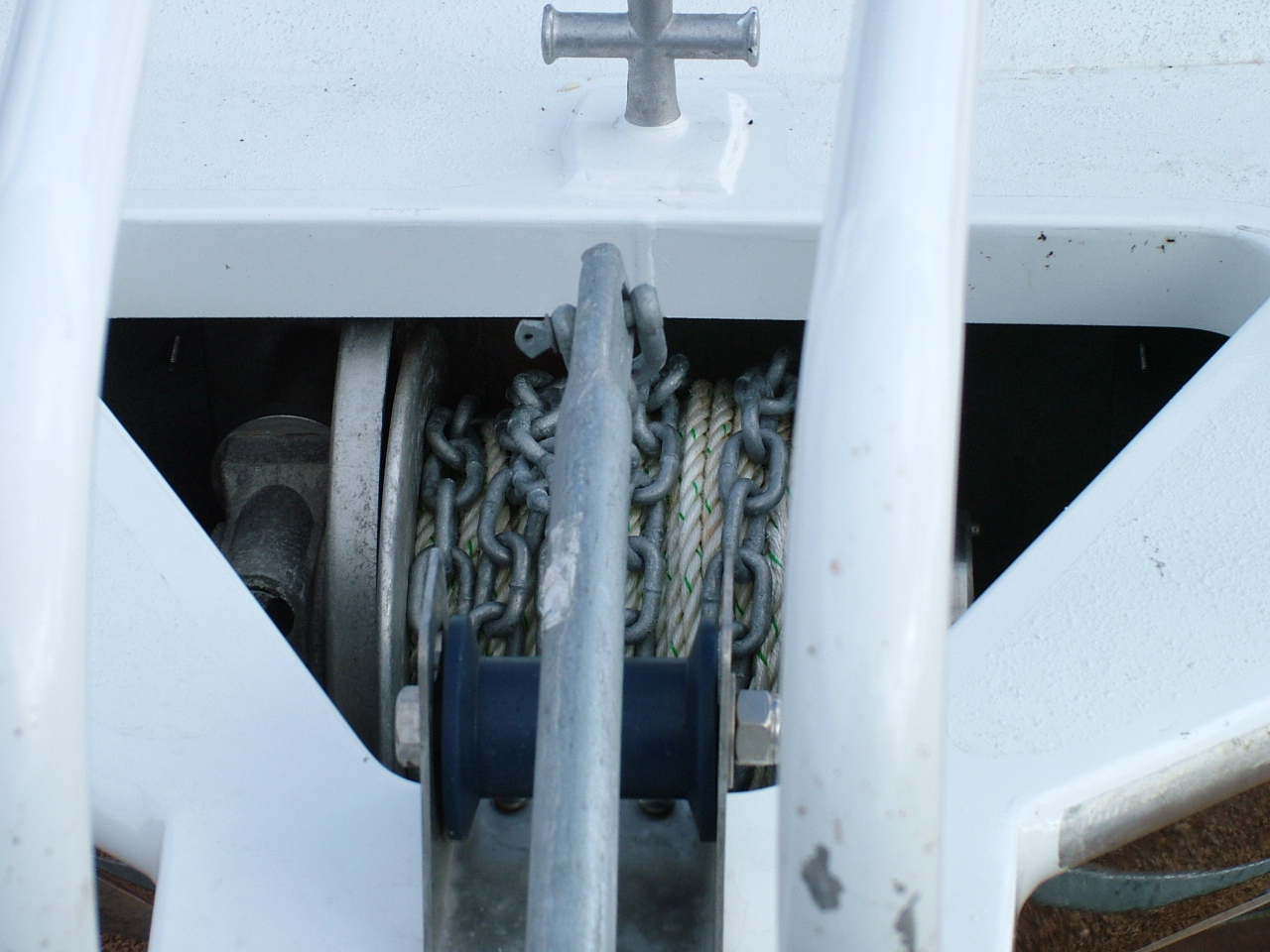

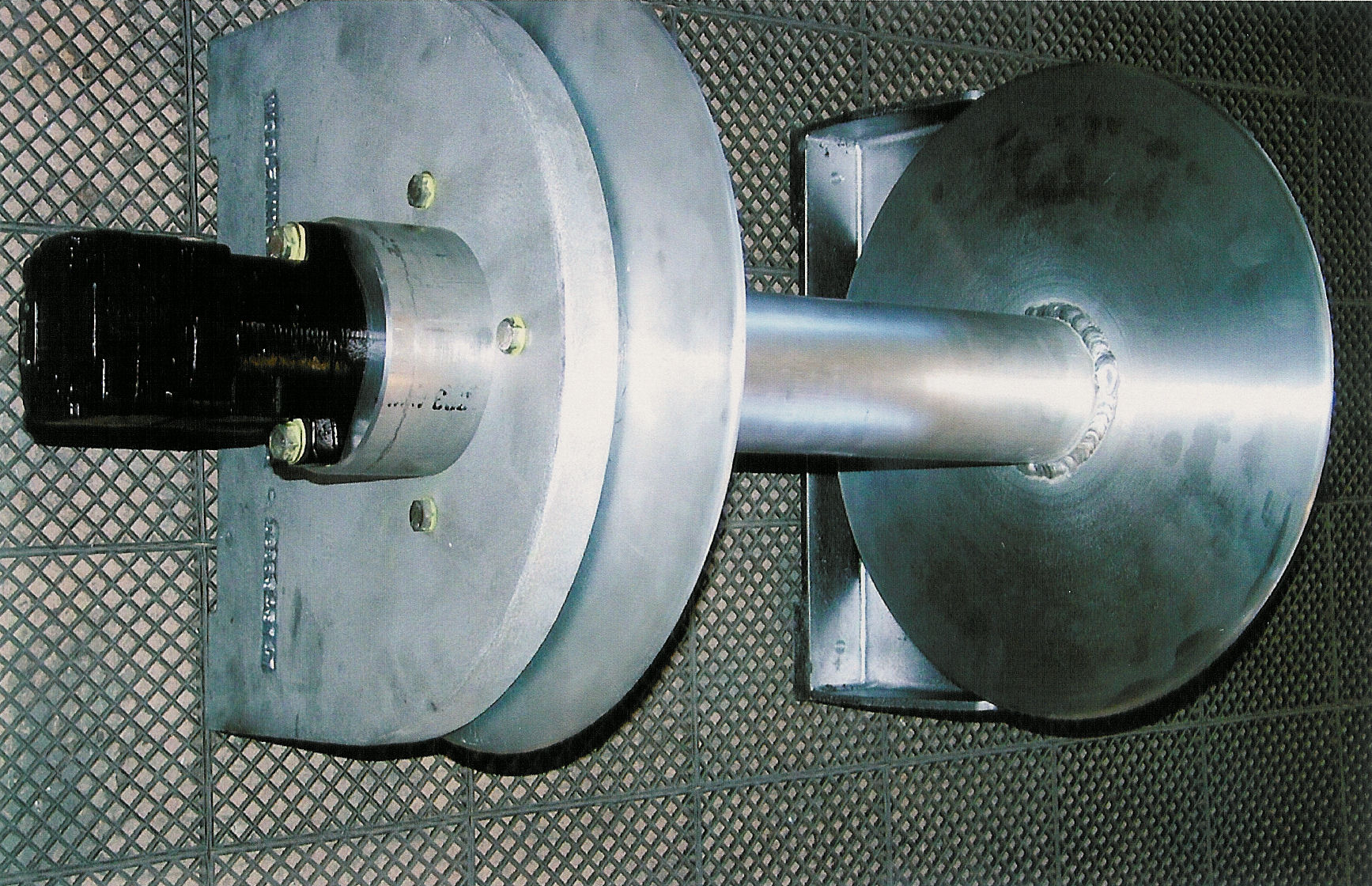

Model 2000 Woolfwinch mounted below deck, bolted to bulkhead.











New model 2000 and 2500 now with optional well base which lowers the winch 100 mm

 and puts the motor below deck level:









HOW GOOD IS THIS?

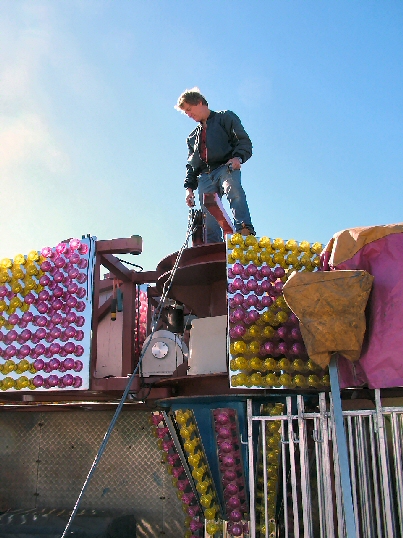

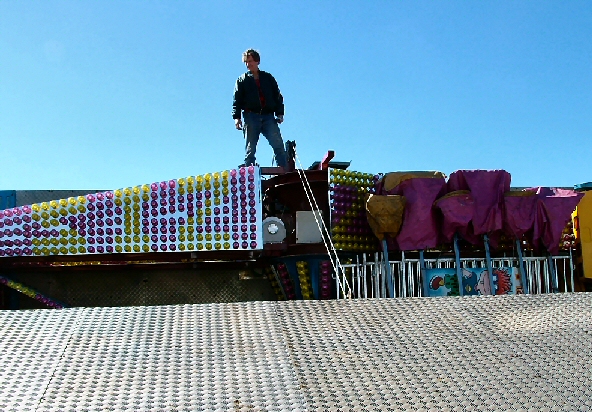

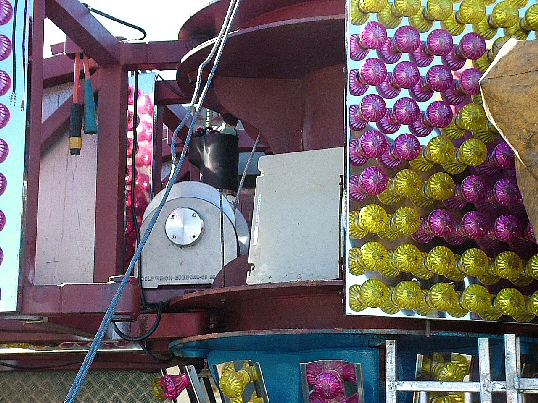

Shown below is a Model 2000 Woolfwinch anchor winch (with one small inexpensive extra) being used to raise and

lower sections of floor, weighing 3 ton a piece, every time this sideshow moves from show to show.

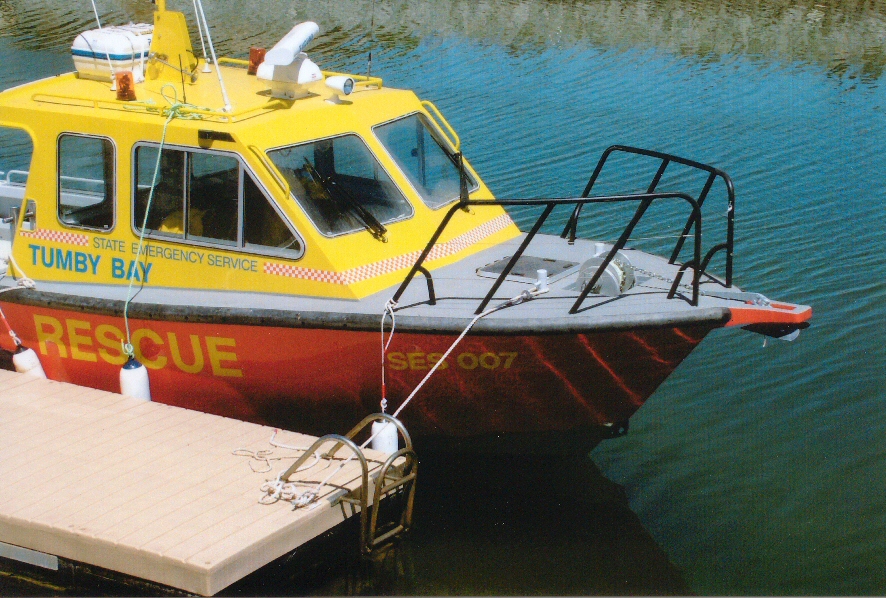

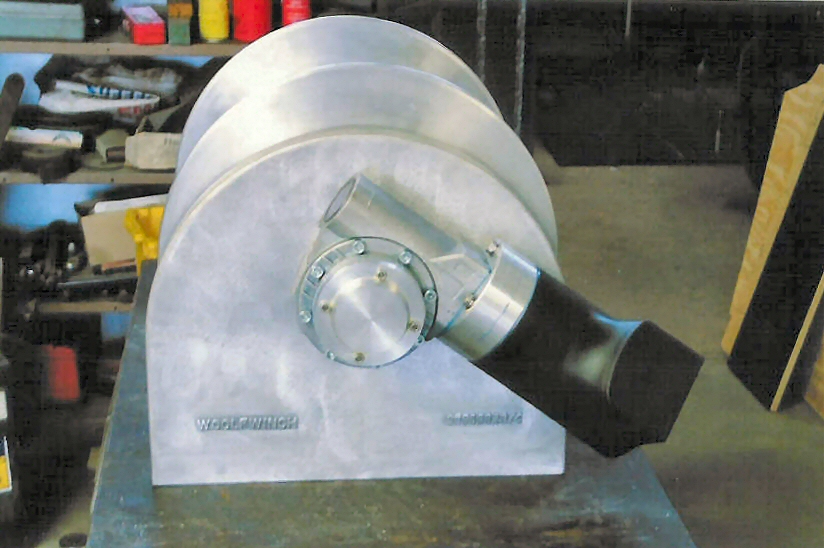

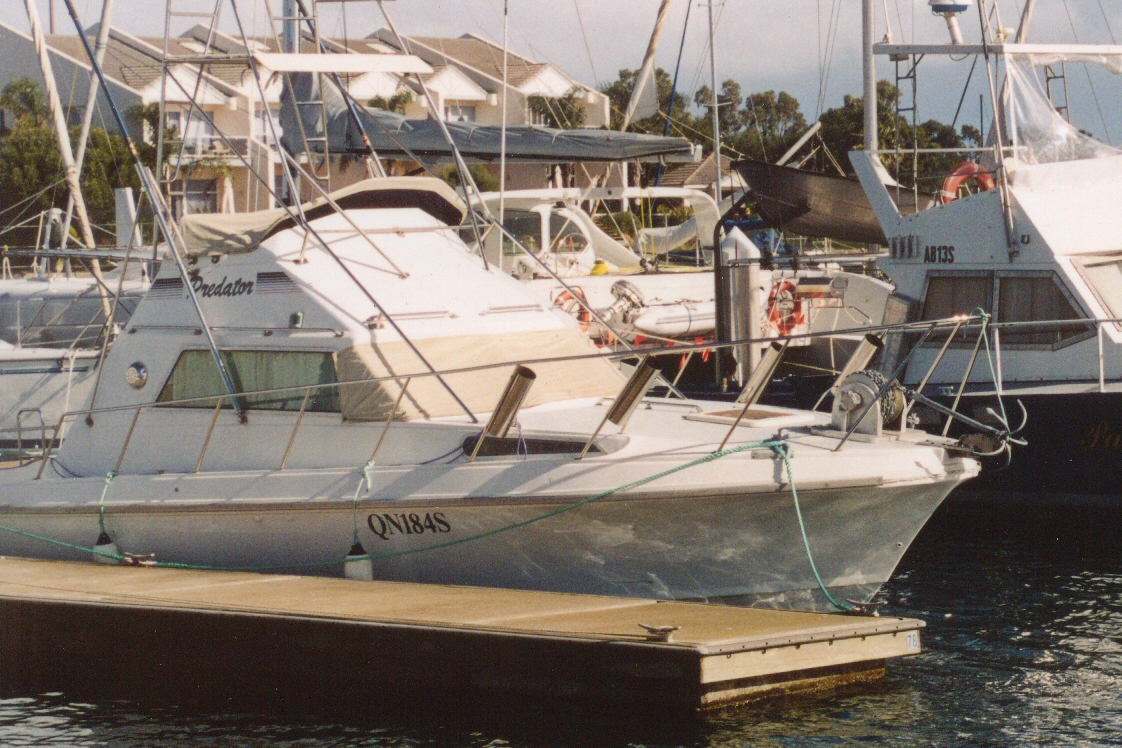

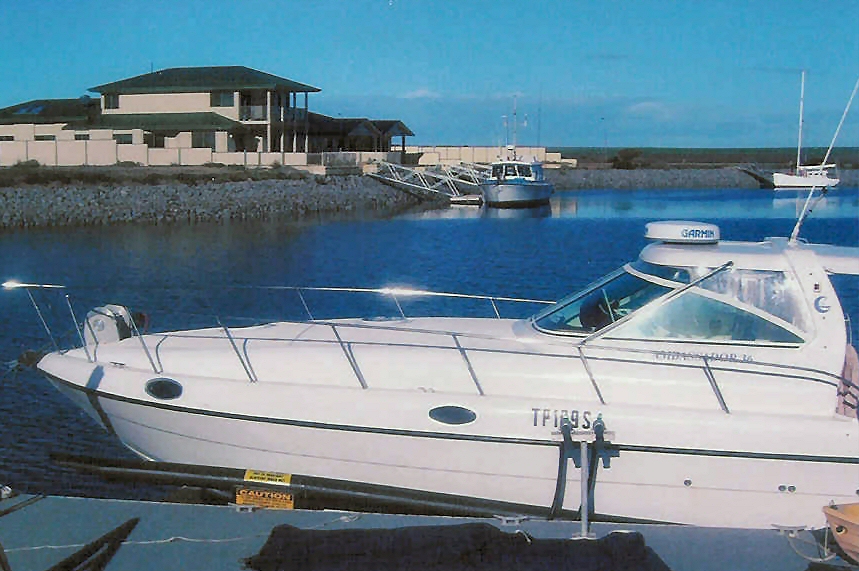

MODEL 2500







Built for boats 24 to 30 foot. The Drum holds 130 metres 10mm rope plus chain.

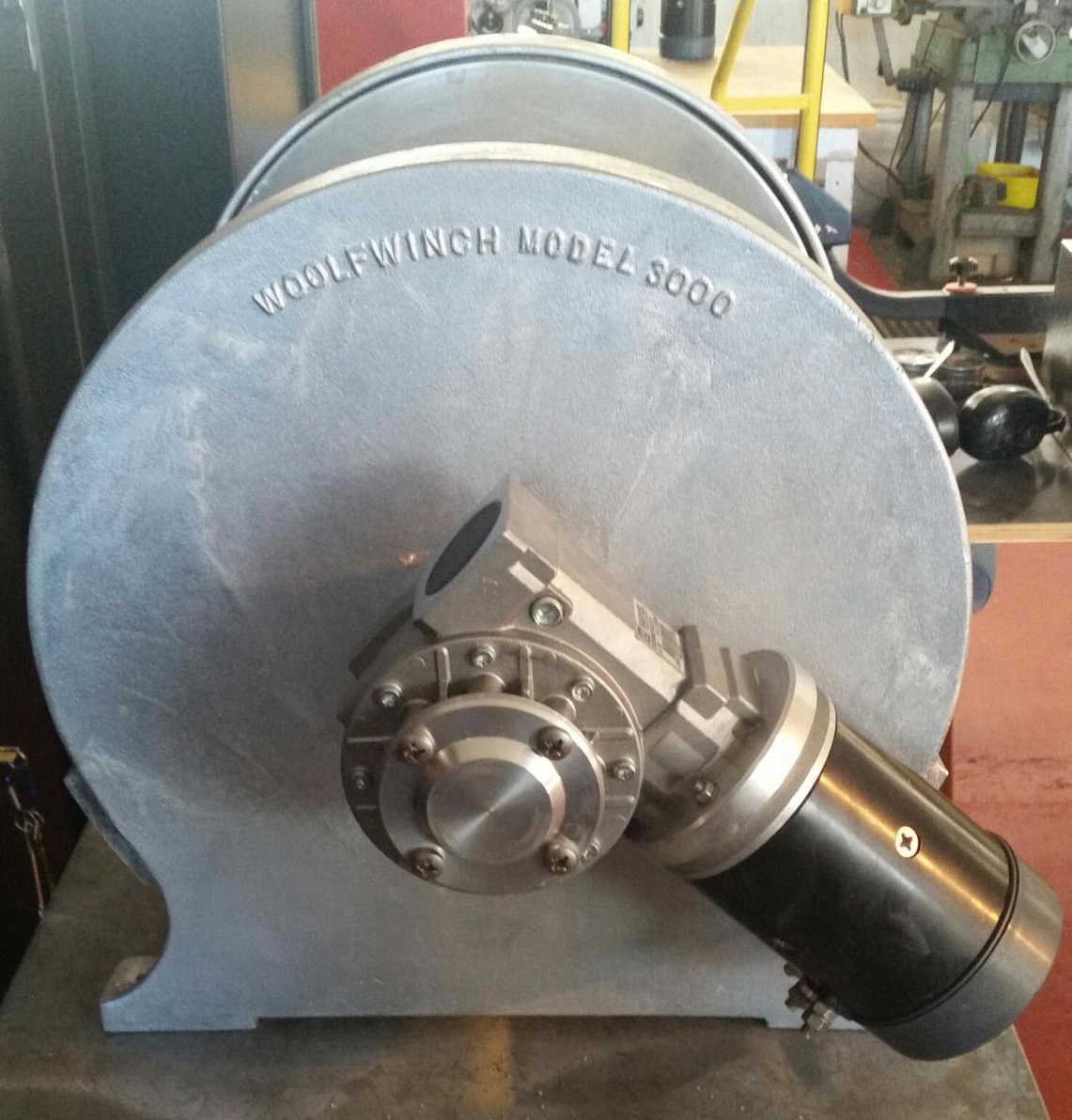

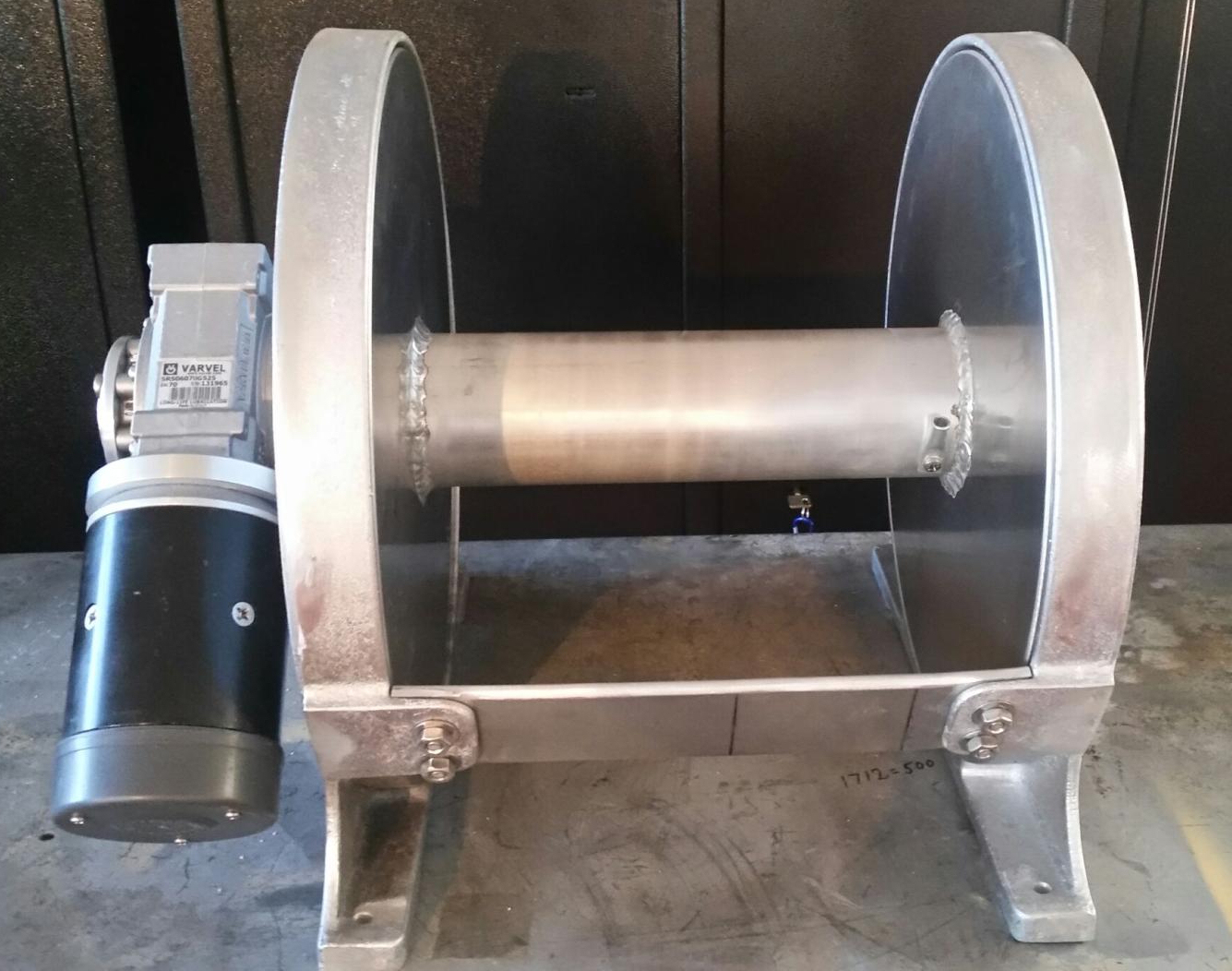

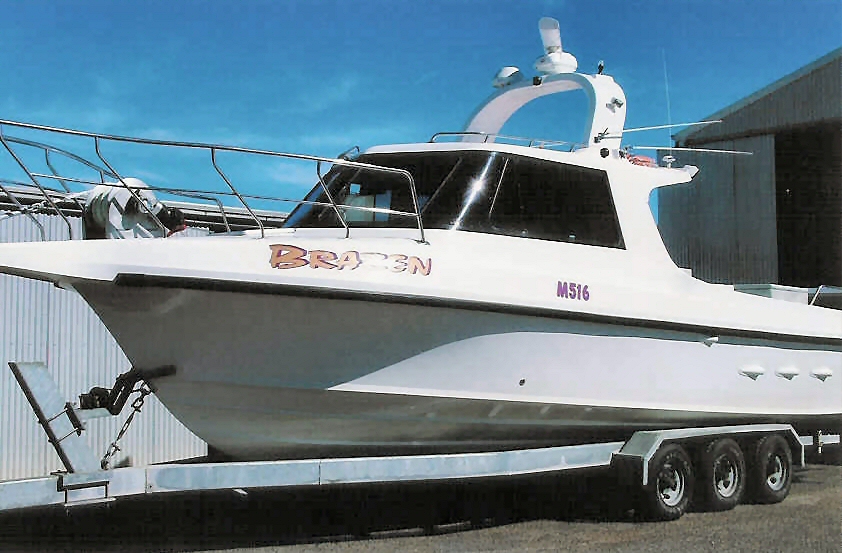

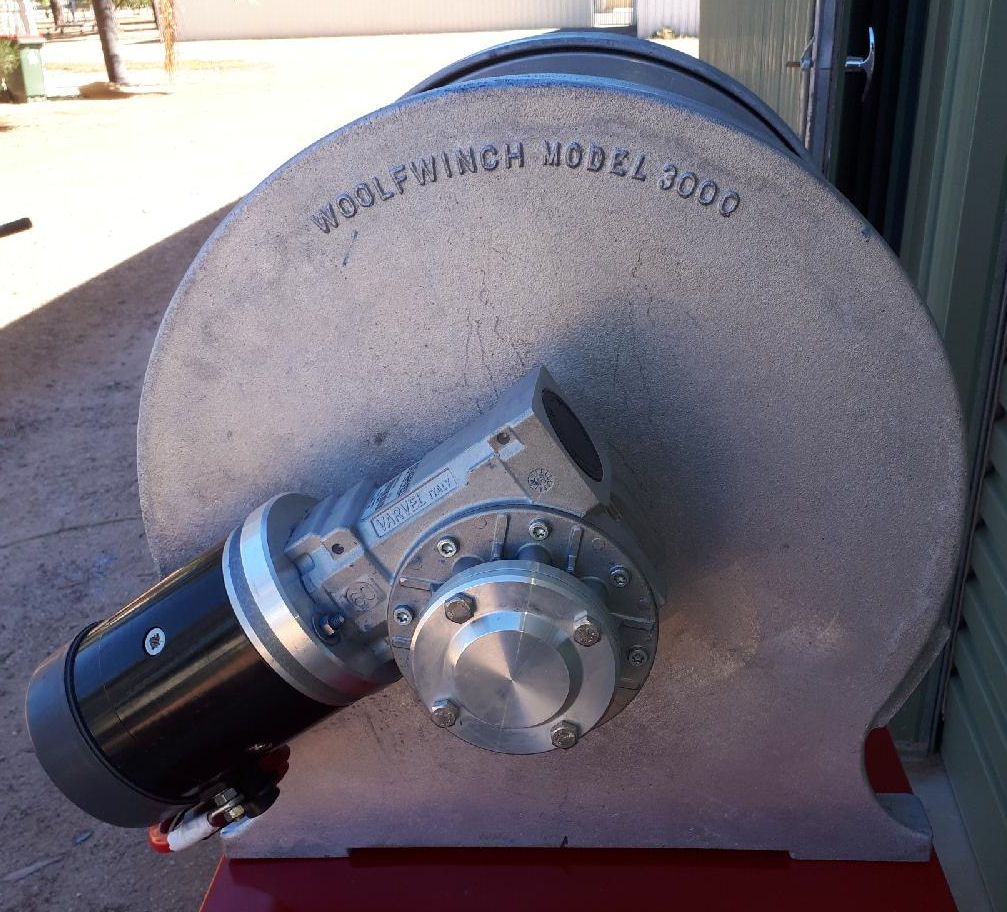

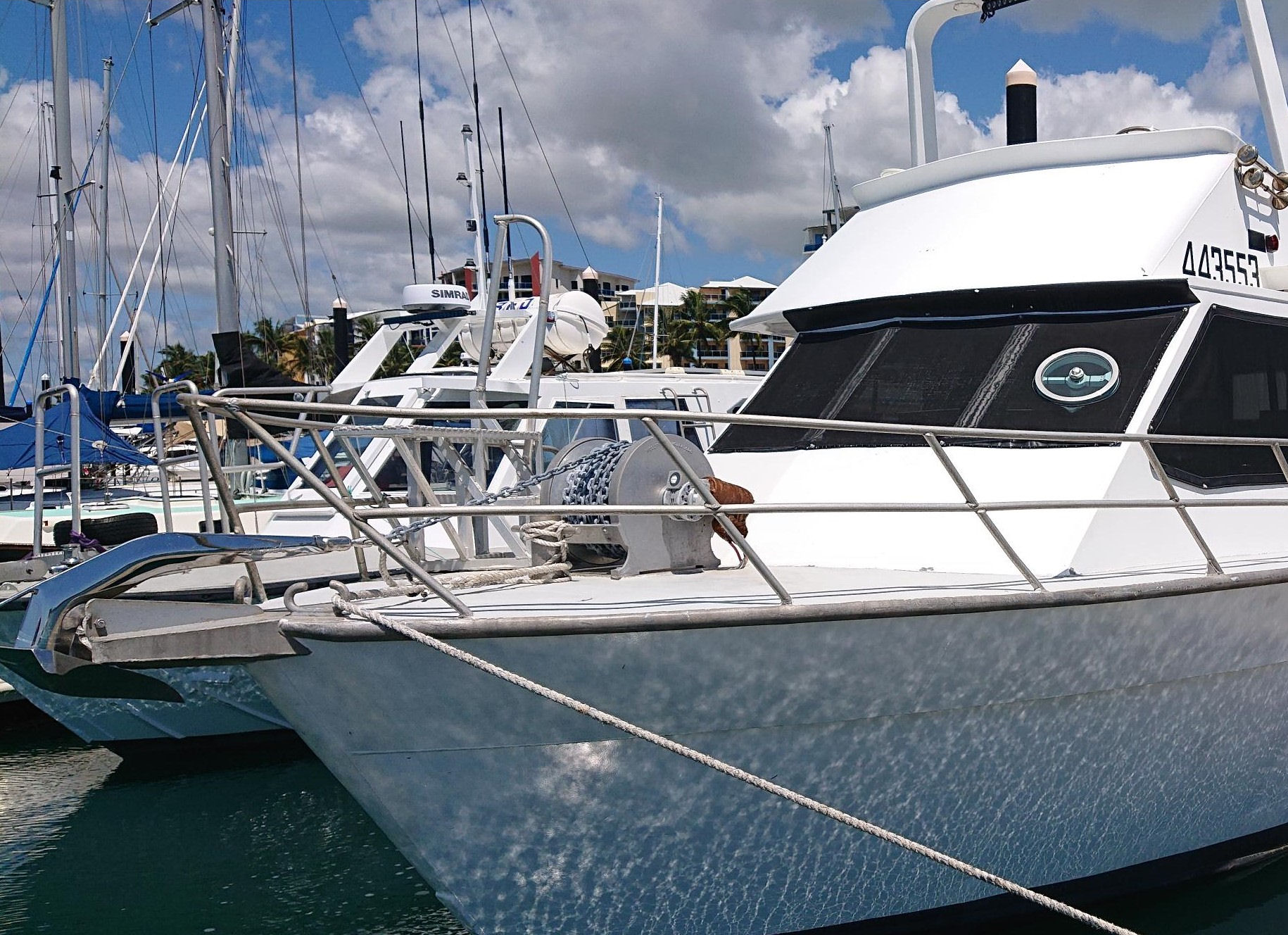

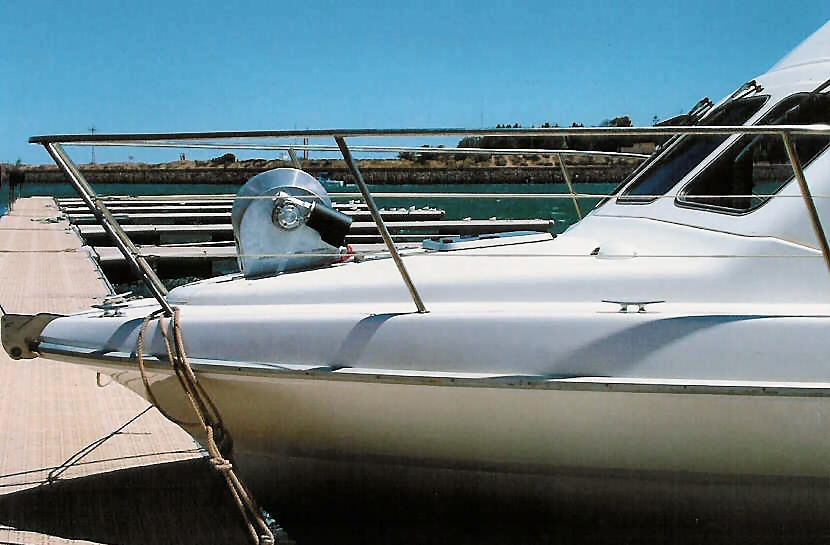

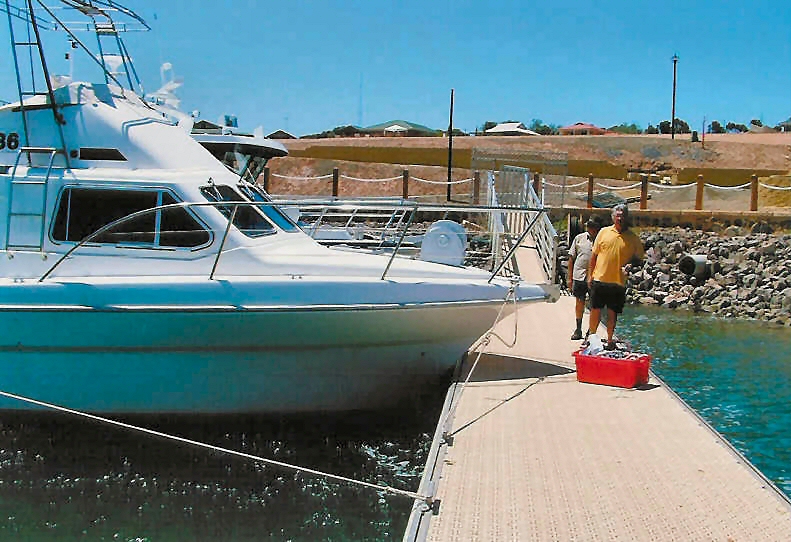

MODEL 3000







Built for boats 30 to 40 foot. The Drum holds about 150 metres 12mm rope plus chain.

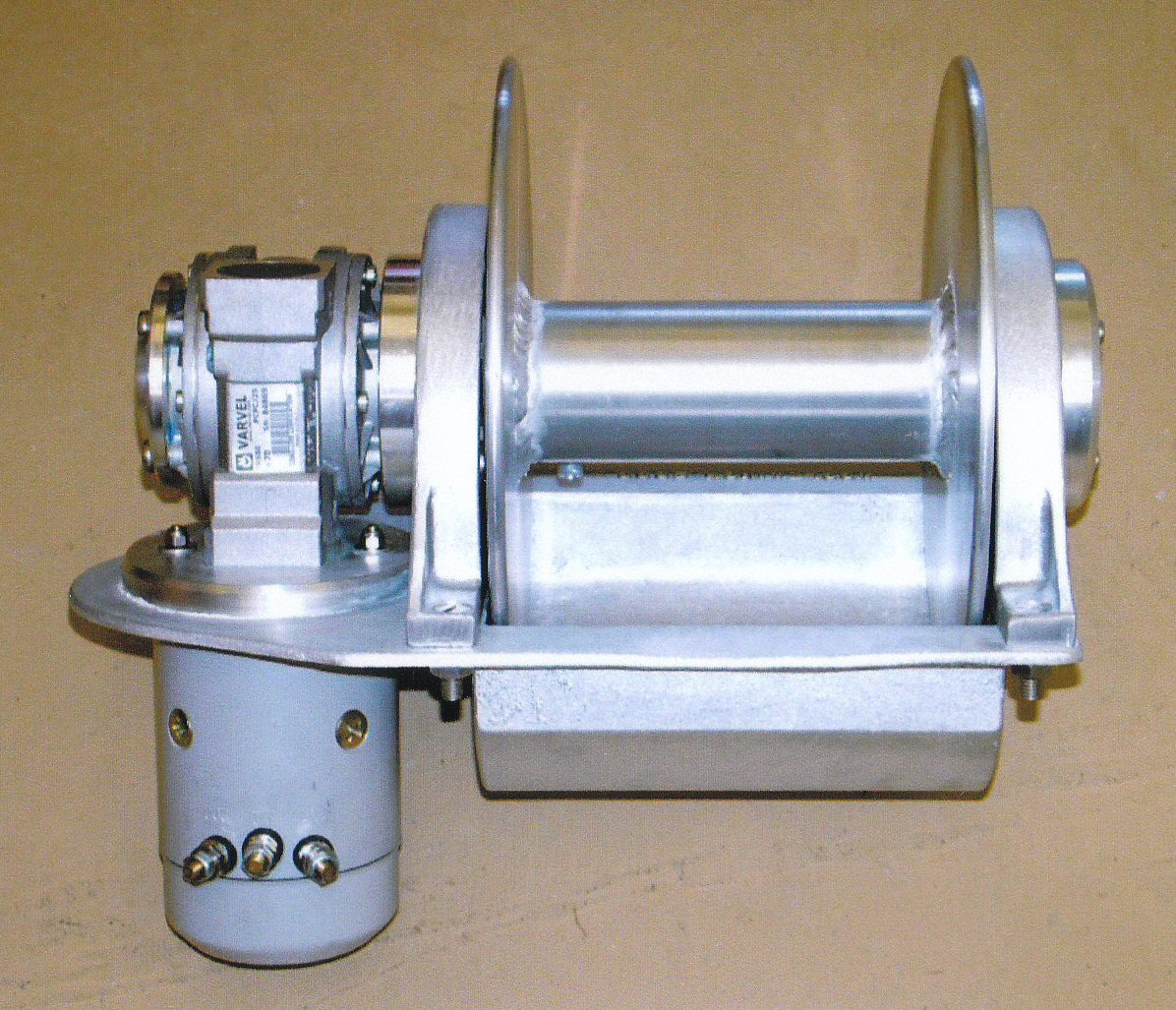

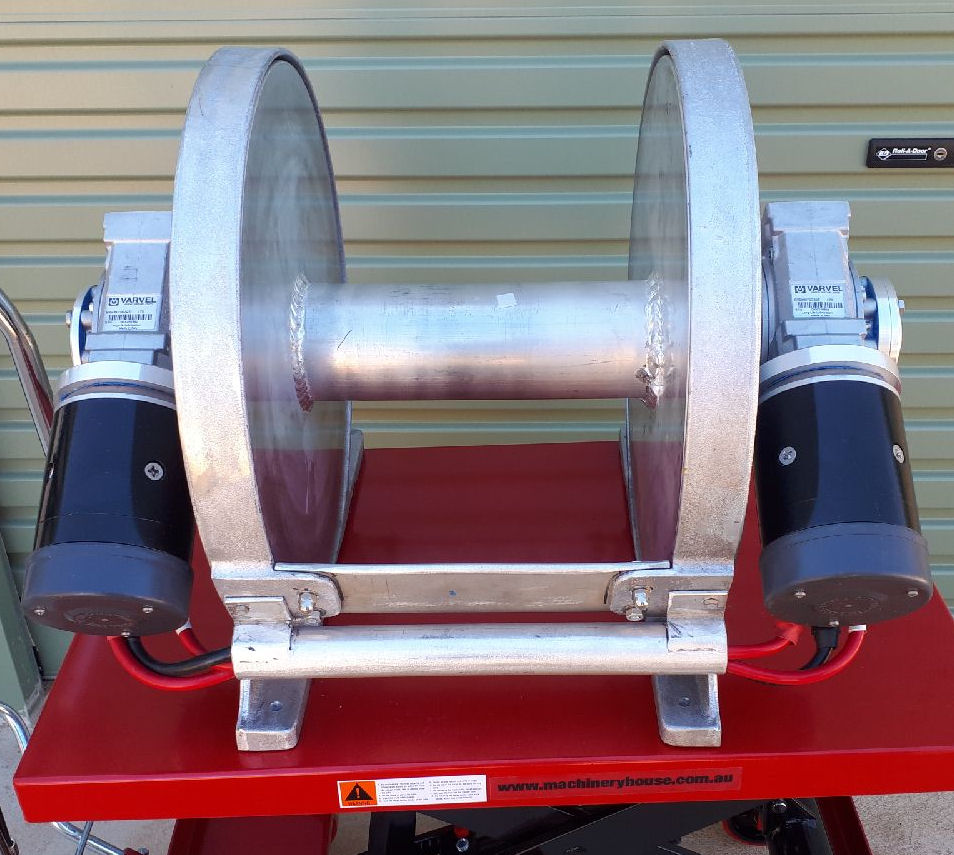

Model 3000 is available in standard electric and now also in Hydraulic drive.



















PRICING







Standard model 1500    Click to see Diagram costs $2200.00 + GST
Wellbase model 1500    Click to see Diagram costs $2400.00 + GST
Standard model 2000    Click to see Diagram costs $2400.00 + GST
Wellbase model 2000    Click to see Diagram costs $2600.00 + GST
Standard model 2500    Click to see Diagram costs $2600.00 + GST
Wellbase model 2500    Click to see Diagram costs $2800.00 + GST
Model 3000 electric or hydraulic costs $3200.00 + GST















We also stock:



  • heavy duty stainless steel Bow Rollers

  • Nylon Rope

  • Battery Cables to suit winches

  • Anchors and Anchor Chain

  • stainless steel Bolts and Nuts
